Garden Studios was established in February 2021 and is the largest-scale film studio in central London with a total footprint of over 300,000 sq. ft. We house eight sound stages, our largest boasting 23,414 sq. ft, additional sound-treated stages, a permanent virtual production stage of 3186 sq. ft, with a 20 x 5m LED volume. Supporting spaces include production offices, workshops, green rooms, costume, and hair & makeup rooms, private meeting pods that overlook our canalside, and parking.

Garden Studios was built with our values deeply embedded in the fabric of our studio. We prioritise sustainability, inclusivity, education, innovation, and accessibility. We’re still on a journey to reach all our sustainability goals but are proud to say that we have achieved B Corp™ certification and that we’re taking part in the Albert Studio Sustainability Standard, BAFTA’s film studio sustainability certification.

Being a positive force in our local community is important to us and we try to achieve that through educational programs, internships, a local artist-in-residence initiative, free use of studio space for local young talent, and The Hive, a shared workspace for local artists and makers which offers podcast, vodcast, and photography studios.

IRIS CAMPUS

IRIS 1

• 2,170 sq.m / 23,414 sq.ft total area
• 62m maximum length
• 39.5m maximum width
• 10.2m clear working height to grid
• 50kN/m2 laser levelled concrete floor
• 4m x 5m acoustic sliding stage door, small van double acoustic loading door and pedestrian sound locked access from stage offices, bathrooms and other facilities
• Soundproofing to all walls and roof to achieve NR25. Insul-quilt absorption treatment to all walls above 2m. Soundproof stage doors, and sound locked main pedestrian access
• Self supporting rigging superstructure and perms with total loading capacity of up to 40 tonnes
• Up to 1400A of 3 Phase Power presented via multiple Ceeform and Powerlock outputs
• Utility power presented as UK 13A outlets
• LED high level house lighting and low level perimeter lighting
• Gas fired comfort heating
• Fibre, CAT6 and Wifi with internet connectivity
• Vesda fire alarm system with over-ride control
• High capacity extraction system for removal of pyrotechnic effects and excess heat

IRIS 2

• 1,091 sq.m / 11,819 sq.ft total area
• 36.4m maximum length
• 29.5m maximum width
• 10.2m clear working height to grid
• 50kN/m2 laser levelled concrete floor
• 4m x 5m acoustic sliding stage door, small van double acoustic loading door, and pedestrian sound locked access from stage to office, bathrooms, and other facilities
• Soundproofing to all walls and roof to achieve NR25. Insul-quilt absorption treatment to all walls above 2m. Soundproof stage doors, and sound locked main pedestrian access
• Self-supporting rigging superstructure and perms with total loading capacity of up to 24 tonnes
• Up to 900A of 3 Phase Power presented via multiple Ceeform and Powerlock outlets
• Utility power presented as UK 13A outlets
• LED high level house lighting and low level perimeter lighting
• Gas fired comfort heating
• Fibre, CAT6 and Wifi with internet connectivity
• Vesda fire alarm system with over-ride control
• High-capacity extraction system for removal of pyrotechnic effects and excess heat

IRIS 3

• 465 sq.m / 5,005 sq.ft total area
• 25.7m maximum length
• 18.8m maximum width
• 10.2m clear working height to grid
• 50kN/m2 laser levelled concrete floor
• 4m x 5m acoustic sliding stage door, small van double acoustic loading door and pedestrian sound locked access from stage to offices, bathrooms and other facilities
• Soundproofing to all walls and roof to achieve NR25. Insul-quilt sound absorption treatment to all walls above 2m. Soundproof stage doors, fire doors and sound locked main pedestrian access
• Self-supporting rigging superstructure and perms with total loading capacity of up to 20 tonnes
• Up to 500A of 3 Phase Power presented via
• multiple Ceeform and Powerlock outputs
• Utility power presented as UK 13A outlets
• LED high level house lighting and low
• level perimeter lighting
• Gas fired comfort heating
• Fibre, CAT6 and Wifi with
• internet connectivity
• Vesda fire alarm system with over-ride control
• High capacity extraction system for removal of pyrotechnic effects and excess heat

IRIS OFFICES 1

FIRST FLOOR

• Open plan 145 sq.m / 1571 sq.ft
• Integrated kitchen area
• Raised floor with structured network cabling
• and power to floor boxes
• Comfort cooling, heating and ventilation
• LED lighting
• Access control security system

MEETING ROOM

• 15 sq.m / 160 sq.ft
• Raised floor with structured network cabling
• and power to floor boxes
• LED lighting
• Access control security system

SECOND FLOOR

• Open plan 157 sq.m / 1700 sq.ft
• Integrated kitchen area
• Raised floor with structured network cabling
• and power to floor boxes
• Comfort cooling, heating and ventilation
• LED lighting
• Access control security system

SHARED FACILITIES

• Male, female and disabled toilets to all floors
• Male and female showers
• External food service and breakout areas
• Private and secure yard with parking for cars and production vehicles

IRIS OFFICES 2/3

FIRST FLOOR

• Open plan 140 sq.m / 1506 sq.ft
• Integrated kitchen area
• Raised floor with structured network cabling
• and power to floor boxes
• Comfort cooling, heating and ventilation
• LED lighting
• Access control security system

MEETING ROOM

• 15 sq.m /160 sq.ft
• Raised floor with structured network cabling
• and power to floor boxes
• LED lighting
• Access control security system

SECOND FLOOR

• Open plan 140 sq.m / 1506 sq.ft
• Integrated kitchen area
• Raised floor with structured network cabling
• and power to floor boxes
• Comfort cooling, heating and ventilation
• LED lighting
• Access control security system

SHARED FACILITIES

• Male, female and disabled toilets to all floors
• Male and female showers
• External food service and breakout areas
• Private and secure yard with parking for cars
• and production vehicles

ORCHID CAMPUS

ORCHID 1, 2 & 3 (Coming 2025)

• Orchid Stage 1: 15,026 sq. ft.
• Orchid Stage 2: 12,863 sq. ft.
• Orchid Stage 3: 7,187 sq. ft.

The Orchid Campus is the heart of Garden Studios. The main building has three mid-size sound stages (under construction and available from January 2025), adjacent to a production office block and two large warehouses. There is ample parking on site and much more within a stone’s throw. The property is secured with fencing and 24/7 guards on duty.

ORCHID 2

Orchid 2 is partitioned into two large warehouses suitable for workshop or production use:

• Orchid Workshop 2A (749 sq. m/ 8062 sq. ft)
• Orchid Workshop 2B (939 sq. m/ 10,107 sq. ft)
• 25m maximum width
• 51m maximum length
• 8m height at the eves, rising to 10m height at the apex
• Concrete floor with 30kN/m2 loading capacity
• Vehicle access via large roller shutter door to rear
• Abundant adjacent production vehicle parking
• Up to 1000kVA 3 phase power available on site for production hook-up
• The Orchid 3 building offers a number of supporting offices on two floors totalling 126 sq.m / 1356 sq. ft

LILY CAMPUS

LILY 1

• The main Lily site covers an area of approximately 1 acre laid mainly to tarmac with marked parking for up to 121 cars and 11 trucks, making it perfect as a unit base. A large portacabin office block provides 5500 sq ft of mixed open plan and private air -conditioned office space, some carpeted and some laid to lino with an abundance of power outlets making it particularly suitable for costume workshop use
• Modular office building to two floors
• Mixed open plan and private offices
• Total internal area 880 sqm (9464 sqft)
• Minimum 7.5m height
• Abundant natural light and opening windows for ventilation
• Separate male / female WCs and showers
• Kitchen area
• 200A 3 phase power supply
• Air conditioning heating and cooling throughout
• Structured network cabling throughout
• 100Mb/s leased line internet circuit
• Easy access to Lily 3

LILY 3

• The adjacent Lilly 3 building is a 7815 sq ft sound stage with supporting green rooms, offices, separate parking and direct access to the main Lily campus
• 726 sqm / 7815 sq ft sound stage
• 30m length
• 24m wide
• 7.5m clear working height
• 30kN/m2 resin concrete floor
• Acoustic roller shutter access with 6m width and 6m height
• Soundproofing to achieve NR25, Insul-quilt absorption treatment to all walls above 2.4m and soundproof pedestrian doors & fire exit
• 400A of 3 phase power presented as powerlock and ceeform outlets
• Utility power presented as UK 13A outlets
• LED high level house lighting and low-level perimeter lighting
• CAT6 and Wi-Fi internet connectivity
• Vesda fire alarm system with over-ride control

GREENHOUSE 13 & 14

• Two adjoined open plan warehouses with total floor space of  15,306 sq.ft  / 1422 sq.m
• Two separate single floor open plan office units adjoining warehouse each with floor space of 503 sq.ft / 46.7 sq.m
• Warehouse height 5.5m at the eves, rising to 7m at the apex, with roller shutter access
• 400A phase 3 power per unit (800A total)
• Warehouses fitted with 13A utility power and external power sockets for vehicle hook-up
• Plumbing and wiring for multiple washing and drying machines
• LED lighting throughout
• Card operated access control to office doors
• Separate entrance to offices and workshop space
• Male, female and disabled toilets
• Private and secure yard with parking for cars and production vehicles
• Structured network cabling and Wi-Fi throughout
• Gas central heating and natural (window) ventilation in the offices
• Oil fired warehouse heating system

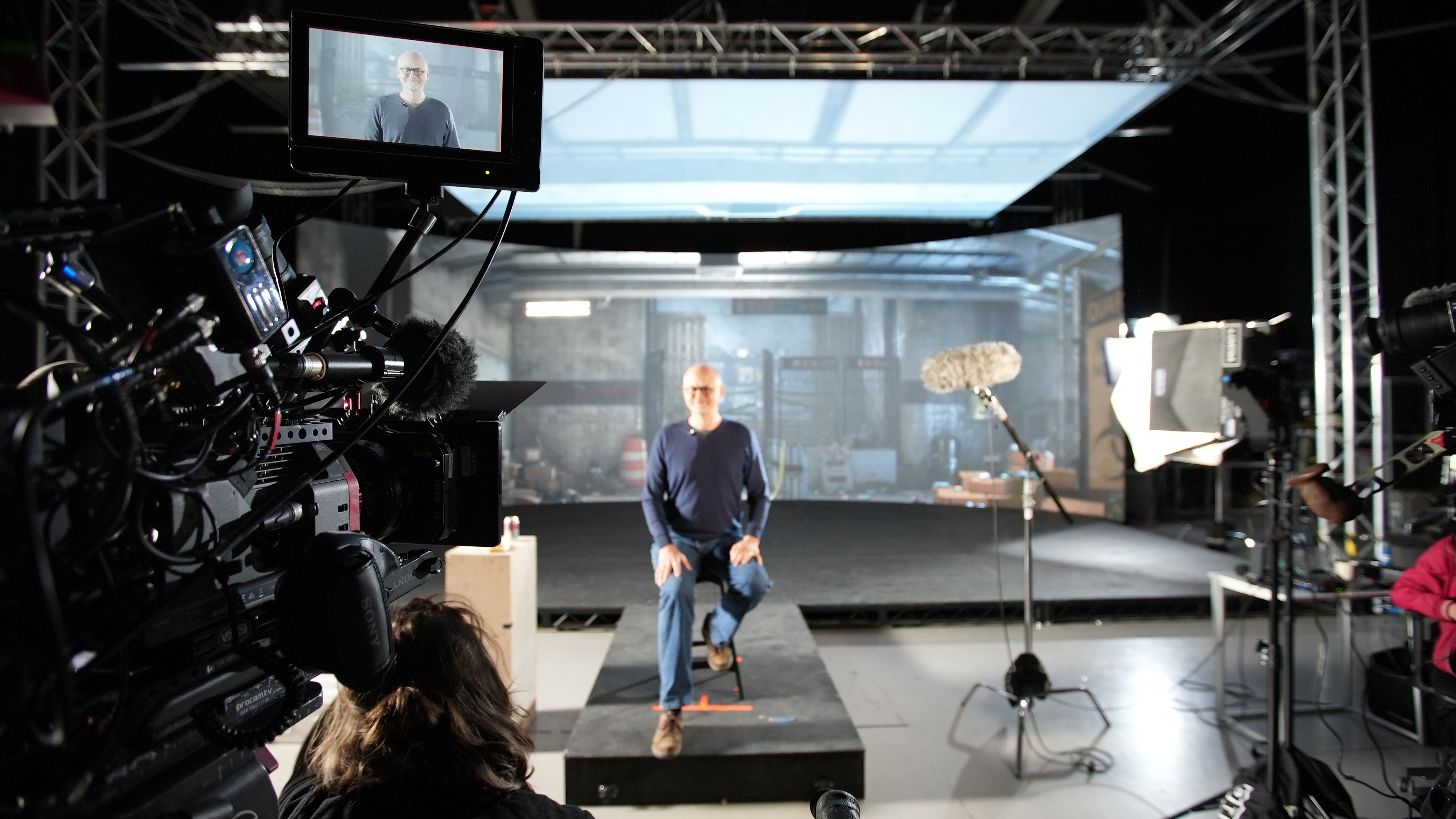

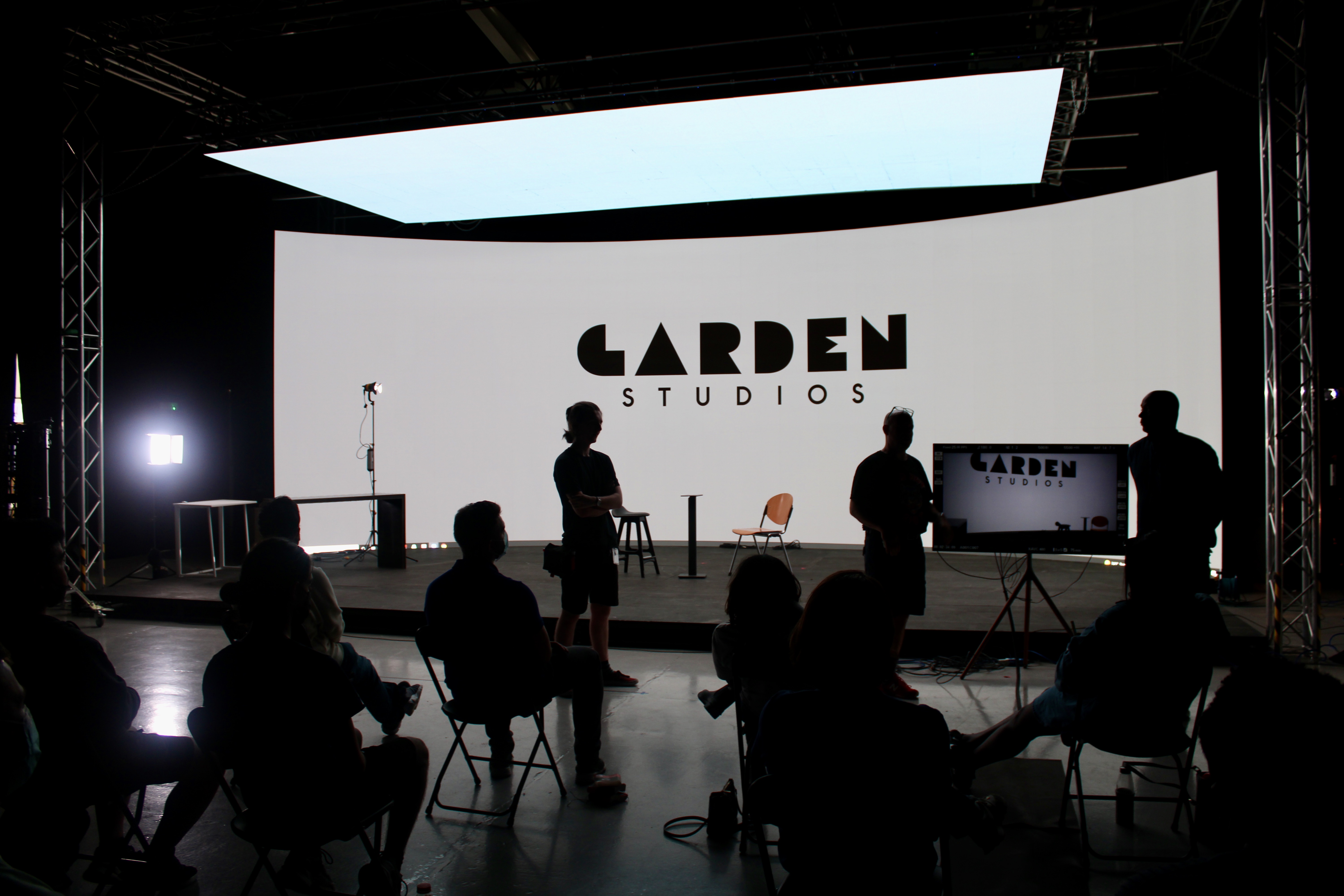

VIRTUAL PRODUCTION STUDIO 1

• 3186 sq ft specialised virtual production studio with 1905 sq ft prep are, green rooms, kitchen, toilets and office space
• 12m x 4m curved main LED wall , expandable to 20m x 5m with 2.6mm pitch Roe Diamond LED panels
• 3.6m x 7.2m motorised height and tilt adjustable LED ceiling with Roe Carbon 5 LED panels
• Brompton LED processors
• Pomfort Live Grading system option
• High performance Unreal Engine-based real time rendering system
• Dedicated Unreal Engine environment editing workstation

Mo-Sys “Startracker” camera tracking systems with lens files and encoders for common lenses

ROSE STAGE 1

• 15,207 sq ft sound stage with adjacent ground rooms that can be allocated for crew or talent. Upstairs is an open-plan production office and private meeting room
• Clarke sliding acoustic loading door with 4m wide x 5m high access​, Soundlocked pedestrian doors to Rose support spaces and offices​, 3 x additional acoustic fire exit doors​
• Main stage panel board with 4 x sets of 400A 3 phase Powerlock outlets with adjustable RCDs, Additional 4 x sets of multi-outlet 63A 3 phase distribution units around perimeter of stage​, Dedicated outdoor multi-outlet 63A 3 phase distribution unit in vehicle yard for exterior power and vehicle hook-up​, Regularly spaced double 13A utility power outlets around the perimeter of stage​, Total stage power capacity of up to 1000kVA​
• Soundproofing to achieve NR25​, Insulquilt reverberation treatment to all walls​Free-standing steel post and aluminium truss support rig with triangular aluminium truss perms at approximately 2m centres​, Uniform distributed load capacity of 145kg per linear meter per perm (total capacity > 15 tonnes), Rigging access from below​
• High bay LED house lighting with emergency backup​, Low bay LED strip lighting around perimeter of stage​
• Air handling system for fresh air cirulation, ventilation and pyrotechnic extract capable of up to 1.5 air changes per hour with heat recovery​, Options available for comfort cooling and heating​
• VESDA smoke detection system with manual override​
